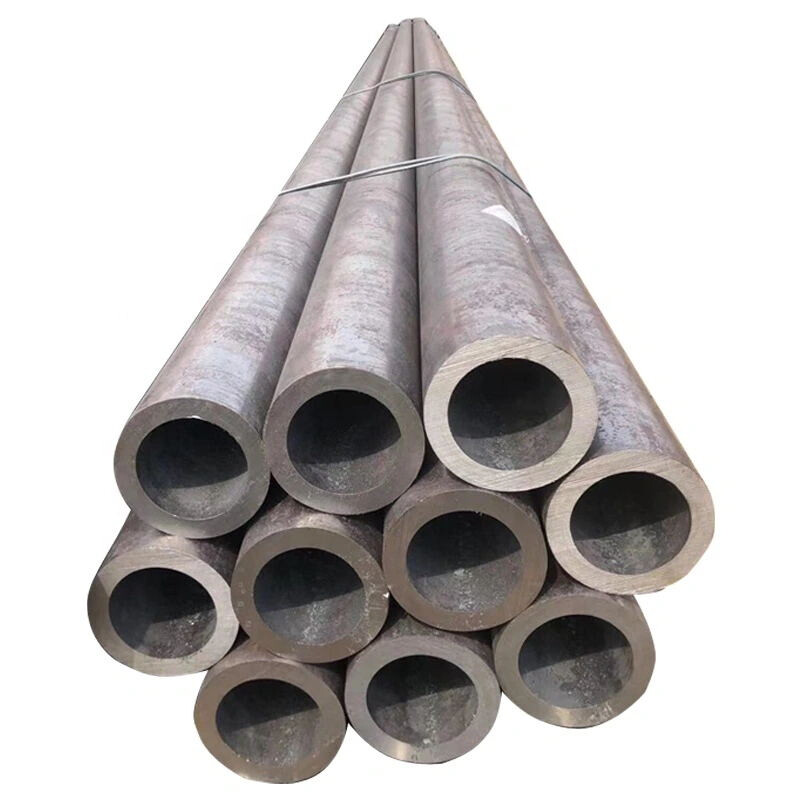

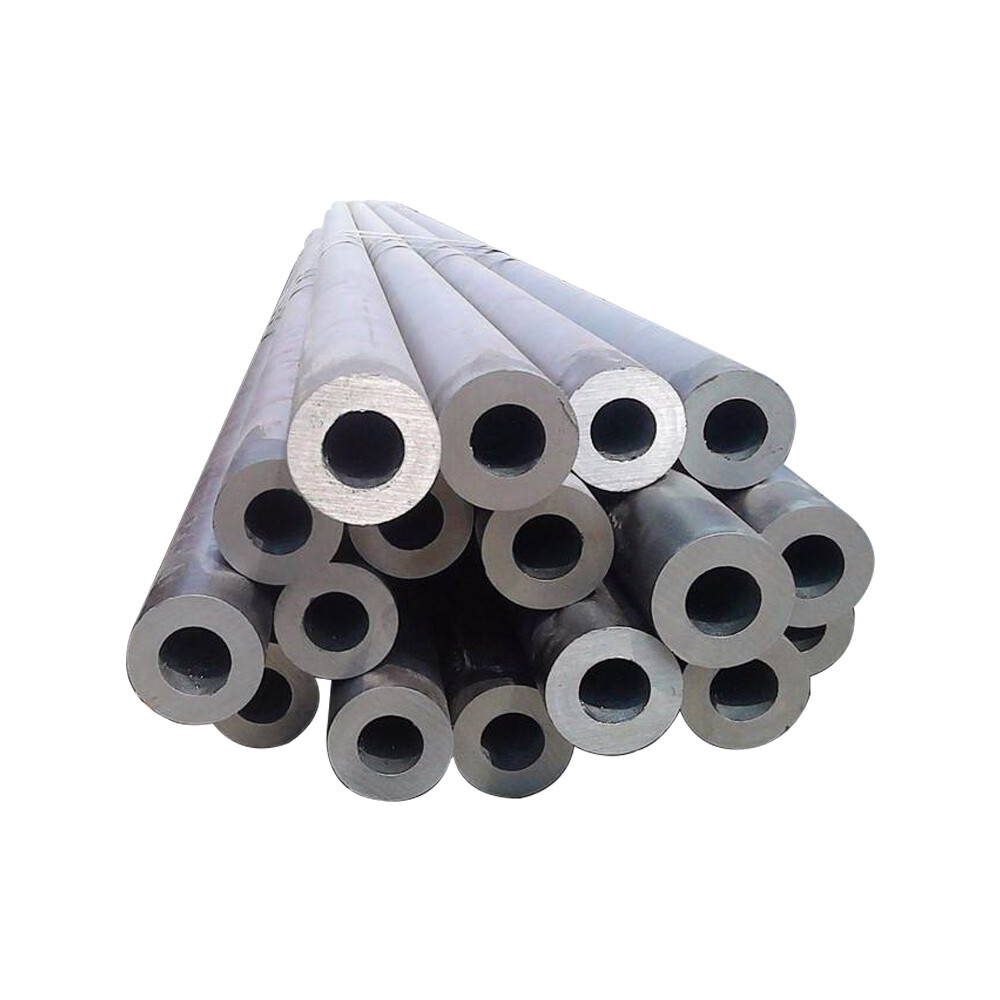

Alloy Steel Pipe

◉ Product Details

The main purpose of alloy steel pipe is to be used in high-pressure and high-temperature pipelines and equipment such as power plants, nuclear power plants, high-pressure boilers, high-temperature superheaters and reheaters. It is made of high-quality carbon steel, alloy structural steel and stainless heat-resistant steel. , by hot rolling (extrusion, expansion) or cold rolling (pulling).

Product Name	Alloy steel pipe
Size	Customized
Outer diameter OD	10.3MM-660MM
WALL THICKNESS	2.24MM-9.53MM
LENGTH	RANDOM
colour	Natural Silver
Product characteristics	pipe
workmanship	Bending, Welding, Cutting
shape	round
material	16-50Mn、27SiMn、40Cr、12-42CrMo、16Mn、12Cr1MoV、T91、27SiMn、30CrMo、15CrMo、20G、Cr9Mo、10CrMo910、15Mo3、15CrMoV、35CrMoV、45CrMo 、15CrMoG、12CrMoV、45Cr、50Cr、45CrNiMo
application	Pipelines for conveying fluids, such as pipelines for conveying oil, natural gas, gas, water and certain solid materials
technics	Hot rolled

standard	standard	standard
10×2	95×4.5-6-8-10-12-14-16-20	325×28-32-34-38-42
12×2	102×4.5-5-6-7-8-10-12-14-16-20	351×10-16-20-25-40
14×2-2.5-3	108×4.5-5-6-7-8-10-12-14-18-20-22	355×6-18-20-25-30-40/52
16×2-2.5-4	114×4.5-5-6-7-8-10-12-14-18-20	377×8-12-15-20-24-28
18×2.3-4-5	121×4.5-5-6-7-8-10-12-14-16-20	377×30-37-40-45-50
20×2.5-3-5	127×4.5-5-6-7-8-10-12-14-16-20	402×10-15-20-25-30-35
24×2.5-3-4-5-6	133×4.5-6-8-12-14-16-18-20-25-30	406×10-20-25-28-35-40
25×2.5-3-4-5-6	140×5-6-7-8-9-10-12-14-16-20-22	426×10-12-14-16-20-25-30-35-40
28×3-3.5-4-5-6	146×4.5-6-8-12-14-16-18-20-25-30	450×10-12-14-16-20-25-34-40-50
32×3.5-4-5-6-8	152×4.5-6-8-12-14-16-18-20-25-30	480×10-12-14-16-18-20-25-30-40
34×4-5-6-8	159×4.5-6-10-12-14	500×10-12-14-16-20-25-34-40-50
36×3.5-5-6-8	159×16-18-20-22-25-30	510×10-12-14-16-20-25-34-40-50
38×4-5-6-7-8-9-10	168×8-10-12-14-20-25-30-35	530×10-12-14-16-18-20-30-40
39×3.5-5-8-10	180×8-12-16-25-30	560×10-14-16-20-25-30-40-50-60
42×3.5-4-5-6-7-8-9-10	180×32-34-38-40-45-50	580×10-14-16-20-30-40-50-70
45×3.5-4-5-6-7-8-9	194×6-8-12-16-20-25-30-40-45-50	600×10-14-18-25-20-30-50-60
48×3.5-4-5-6-7-8-9-10	203×6-7-10-15-20-25-30	610×10-14-18-25-20-30-50-60
51×3.5-4-5-6-7-8-9-10	203×32-36-40-45-50	620×14-20-30-35-45-50-60
56×3.5-4-5-6-7-8-9-10	219×6-8-12-16-18-20-25	630×10-20-30-40-55
57×3.5-5-6-7-8-9-10-12	219×30-40-45-50-55	640×12-25-32-40-50-65
60×3.5-4.5-5-6-7-8-9-12-14	219×55-58-60-65-70	650×15-20-30-40-50-60-65
63×3.5-4.5-5-6-7-8-9-10-12-14	245×8-10-14-17-20-22	680×20-25-35-45-65
68×4-4.5-5-6-7-8-9-10-12-14-16	245×25-28-30-34-40	710×10-20-30-45-50-65
70×4-4.5-5-6-7-8-9-10-12-15-16	273×7-9-12-15-18-20-25	720×10-20-30-45-50-65
73×4-4.5-5-6-7-8-9-10-12-15	273×30-35-38-40-45-50	750×20-35-45-60
76×4-4.5-5-6-7-8-9-10-12-14	299×8-12-16-20-24-28	780×45-65
83×4.5-5-10-12-14-16-18-20	299×30-32-36-38-40-45	820×12-20-35-50-65
89×4.5-8-10-12-14-16-18-20	325×8-12-14-18-38-42	830-710×25-35-43-65
